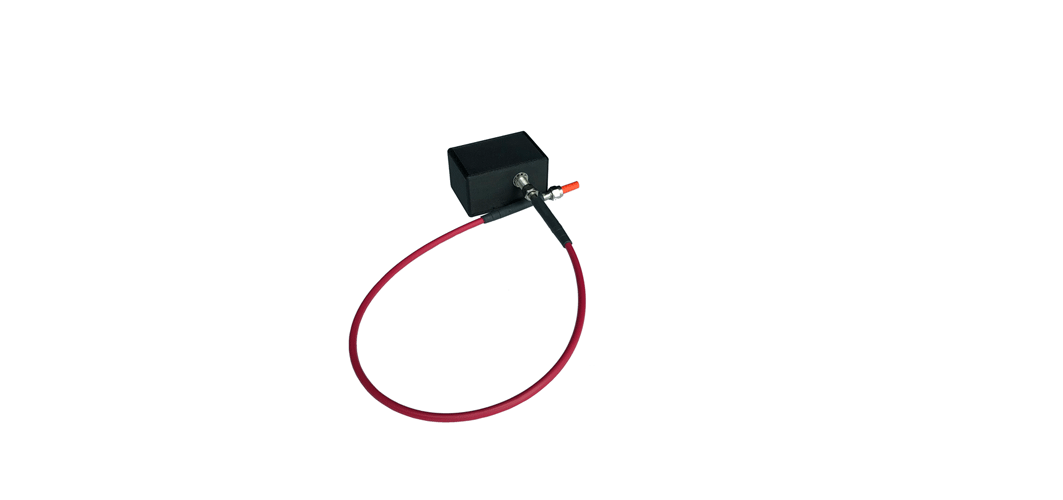

NanoSpectro is the world’s smallest and portable spectrometer built by Enhanced Scientifics Inc. within the UV-VIS-NIR measurement range. NanoSpecro is the most affordable and portable device of its kind with wireless communication capabilities.
Specifications
- Detector: Linear CCD
- Wavelength range: 340 nm to 880 nm
- Slit size: 50 (H) × 500 (V) μm
- Wavelength reporting interval: < 2 nm
- Optical resolution(FWHM): 5 nm
- Wavelength accuracy: ± 1.0 nm (at 650 nm)
- Integration Time: 54 μs-2000000 μs
- Photometric accuracy: ± 8.0%
- Communication Interface: USB2.0 (Full speed) and wireless interface
- Charging type: USB Charger
- Battery life: 5 hours
- Full charging time: 1 hour
- USB connector: Micro USB
- Wireless communication range: Up to 10 meters range
- Dimensions: 55mm (L) × 34mm (W) ×25mm (H)
- Operating temperature: 5 to 50ºC
- Storage temperature: -20 to 70ºC
System Requirements
- Microsoft Windows –32-bit and 64-bit
NanoSpectro comes with free software which has a user- friendly interface. The current software version works with the 32-bit and 64-bit Windows operating systems. The software can measure the spectrum at the desired measurement wavelength as well as plotting and exporting its graphs to MS Excel or pdf format. NanoSpectro has the capability to be connected to the computer using USB or Bluetooth.
Due to NanoSpectro’s affordability and portability, NanoSpectro can be used in a wide variety of industries.
Applications
- Education
- Remote measurement
- Portable measurement
- Color measurement
- Food and beverage
- Agriculture
- Oil and gas
- Biology
- Medical
